CAPTURE basic devices

GEDORE 038703 CAPTURE Display - 4-weg schakelaar Capture 4-way connection box for sensors, One toggle key per channel, Simultaneous connection of 4 sensors (e.g. type XR, type CS)

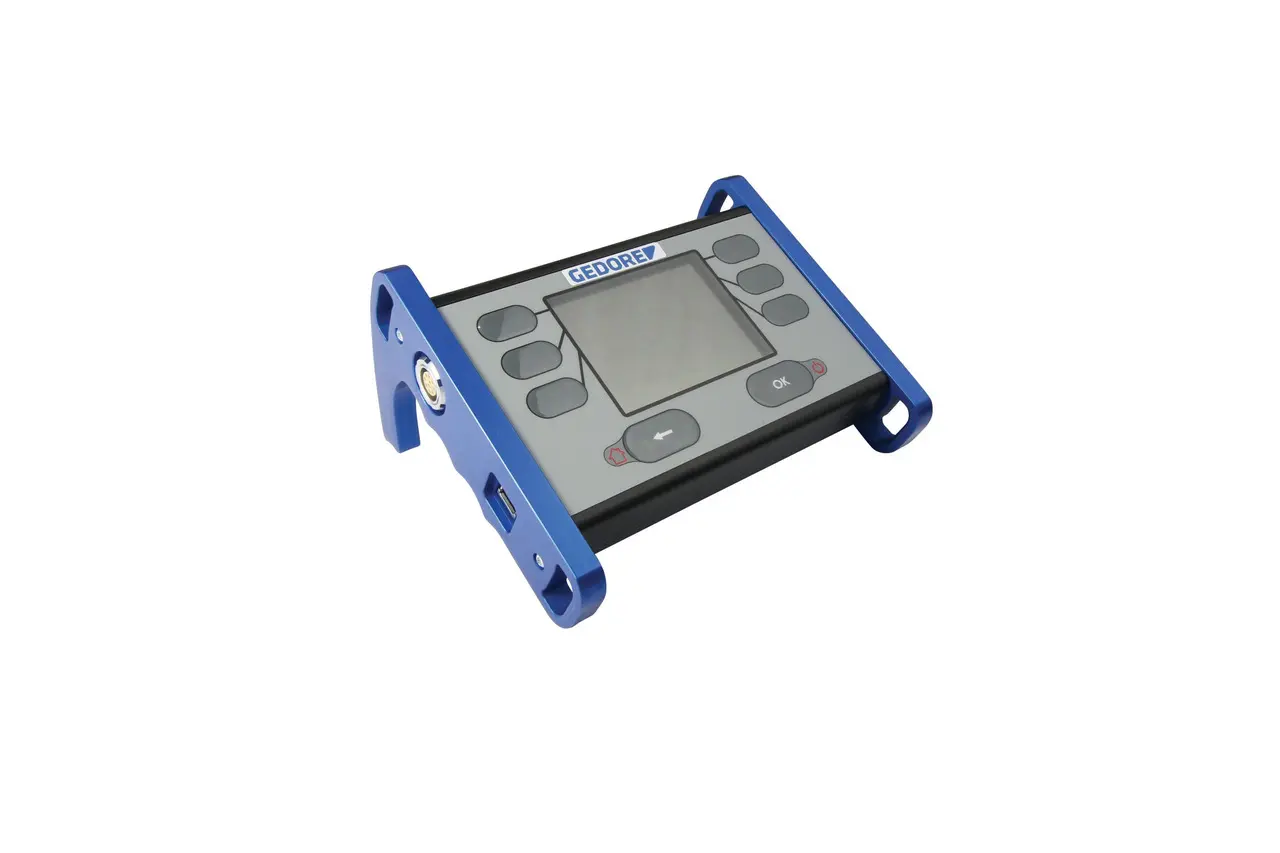

GEDORE 038700 CAPTURE Display Display device for connecting Capture CS and XR sensors (Quicktec automatic sensor recognition) - Compatible with standard torque sensors 2mV/V. Flexibility and cost reduction through external sensors – a display for various sensors and torque ranges, Static measuring sensors (0.1 - 1,500 N·m), Switchable units Nm, cNm, lbf·ft, lbf·in, ozf·in, Compatible with standard torque sensors 2mV/V, Easy and intuitive operation, as well as good readability via the color display. Has four measurement modes: Track (glide value display), First-Peak (break point detection), Peak (peak value measurement), Setting between manual or auto-reset (display value). Switchable between N·m, cN·m, lbf·ft, lbf·in, ozf·in, kgf·cm & kgf·m, Internal memory for up to 2,000 measured values ​​and 50 test sequences as well as a tool database with up to 500 tools, Multiple parameter sets for sensors and screw driving test can be configured. Datenübertragung per USB-Kabel, Versatile usage with powerful lithium-ion battery and mains operation (via USB interface), Free evaluation PC software included in delivery, USB cable, Power supply unit with Euro plug, Operating instructions, stable plastic case with inlay
